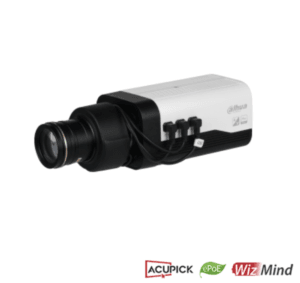

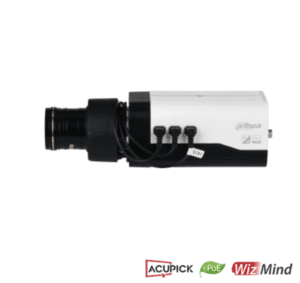

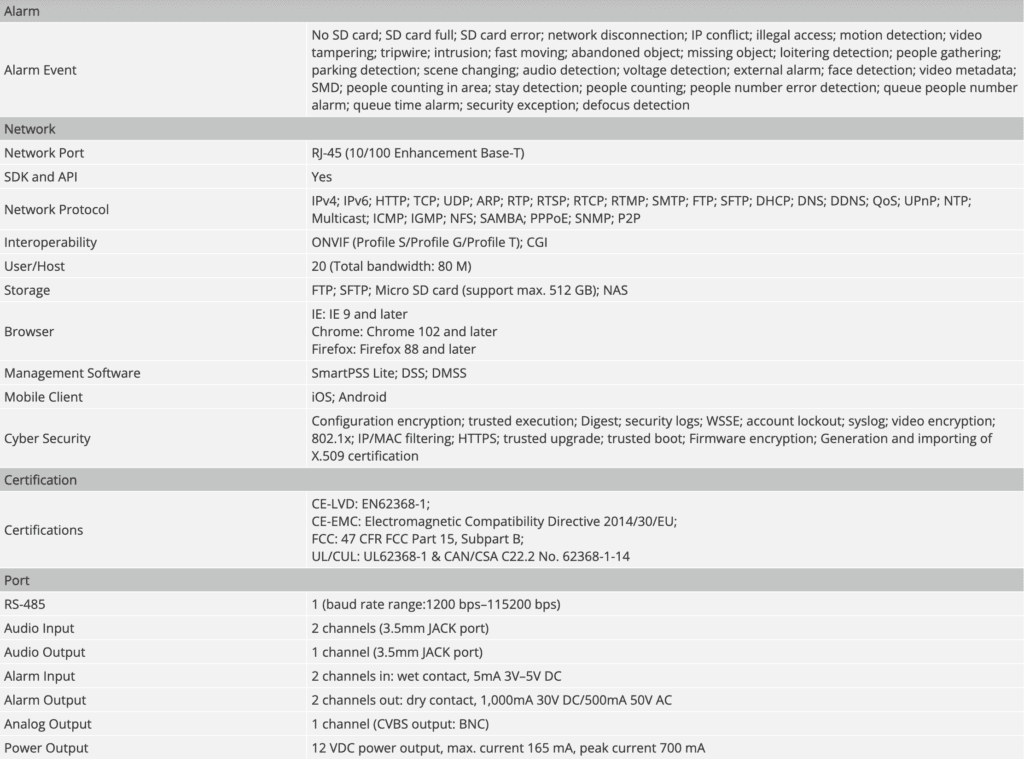

* The parameters and datasheets below can only be applied to 5842- Z-S3 series.

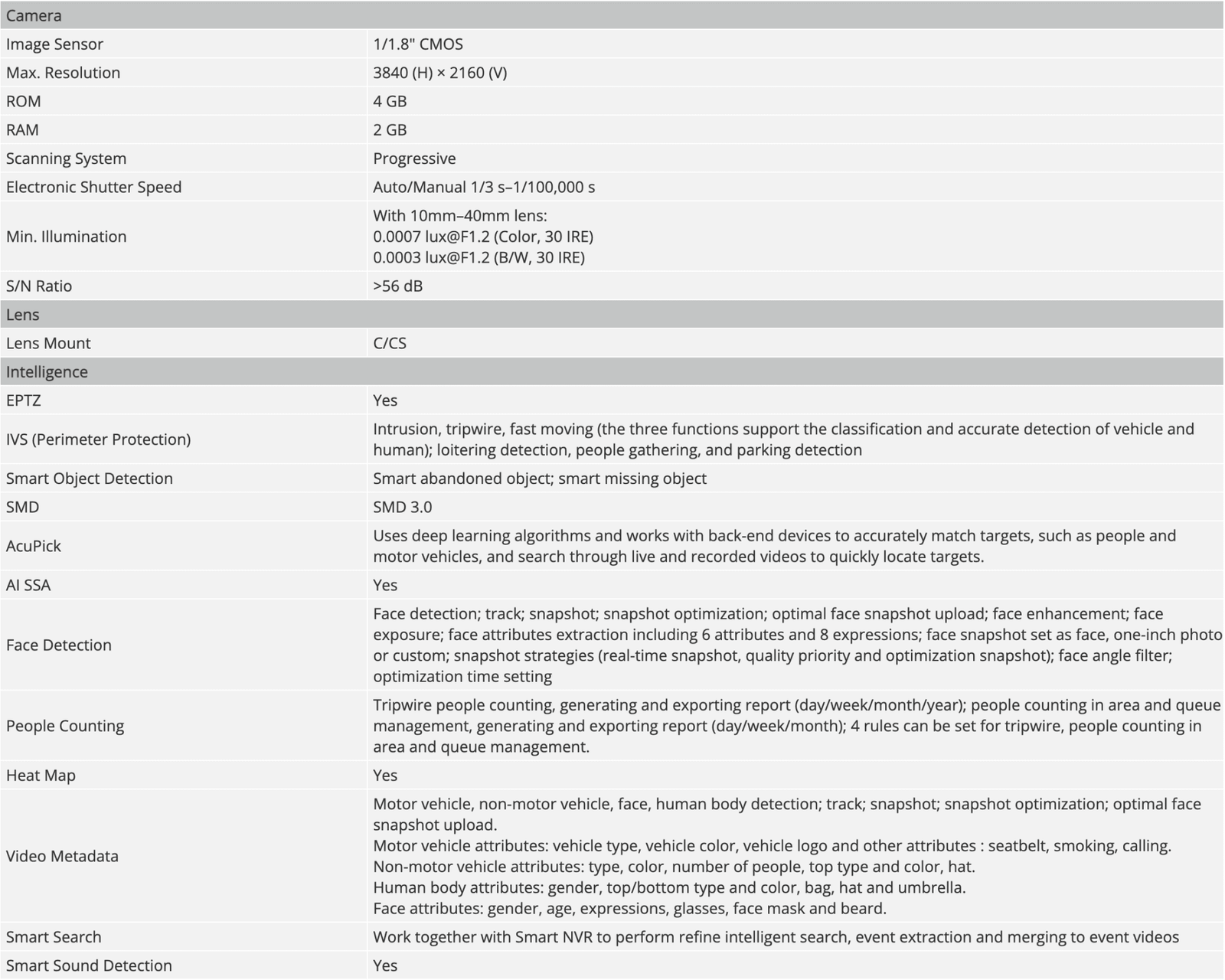

> 8-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.

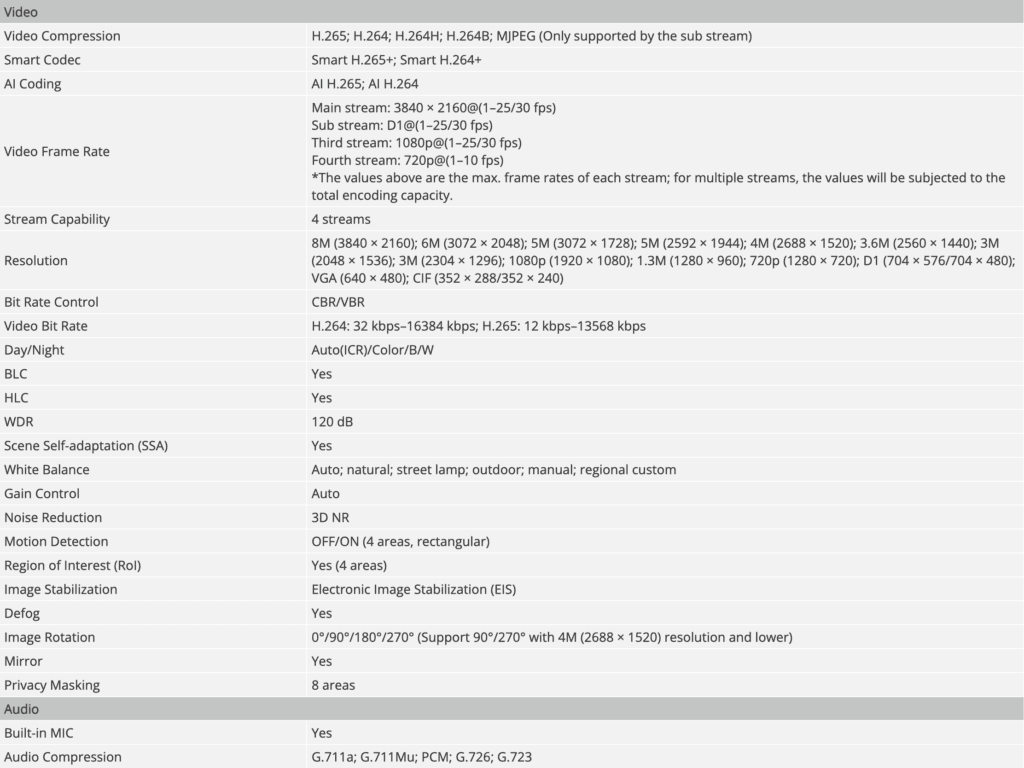

> Outputs max. 8MP (3840×2160) @25/30 fps.

> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.

> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.

> Alarm: 2 in, 2 out; audio: 2 in, 1 out; 485; BNC; supports max. 1 TB Micro SD card, built-in MIC.

> Supports P-Iris, the camera can control the iris more precisely for better image effect.

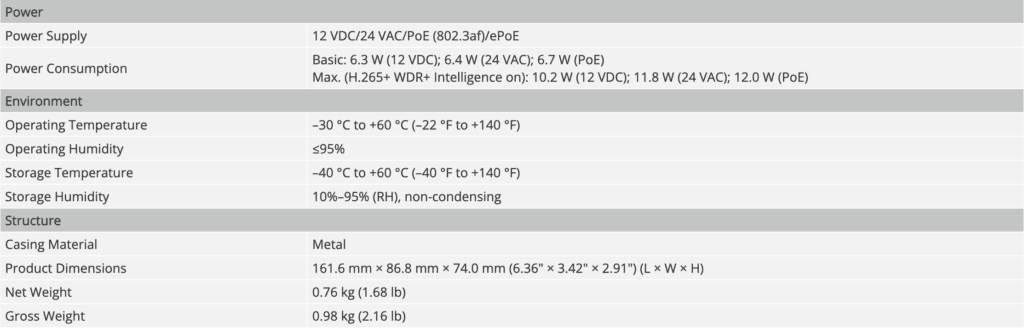

> 12 VDC/24 VAC/PoE power supply; ePoE.

> 12 VDC power output, and max. current 165 mA, easy for installation.

> SMD 3.0.
